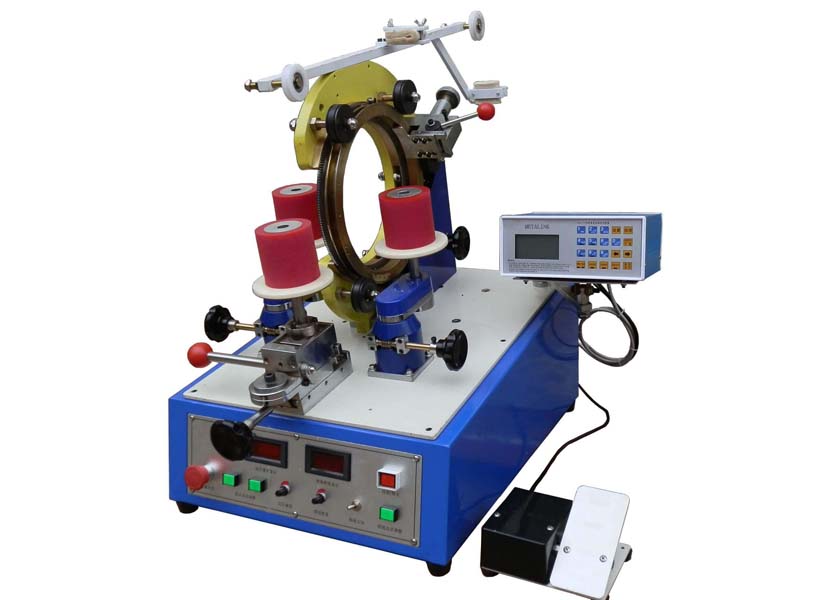

Toroidal Coil Winding Machine
Precision-engineered gear-type winding solutions for transformers, inductors, chokes, and more
Professional Winding Solutions
Our gear-type toroidal winding machines offer superior torque, wider ring openings, increased wire storage capacity, and exceptional versatility for a broad range of wire diameters.
- Gear-Type Mechanism: Provides high torque for consistent winding performance
- Microcomputer Control: 50 memory groups with 20 programs each
- Variable Speed: 0-230 RPM with automatic/foot pedal control
- Interchangeable Rings: Adapt to different product sizes quickly
- Adjustable Fixtures: Wide range of density settings
- Material Versatility: Works with copper, aluminum, steel, and specialty wires
Advanced Features
Smart Control System
Advanced microprocessor with 50 memory groups, each capable of storing 20 programs for rapid setup and repeatable precision.
Dual-Frequency Drive
Variable speed control with automatic/foot pedal options. Infinitely adjustable from 0-230 RPM for optimal winding performance.
Modular Design
Quick-change storage rings allow for adaptation to different product sizes and wire diameters without machine modification.
Technical Note
The gear-type mechanism provides superior torque compared to belt-driven models, making it ideal for thicker wires and demanding winding applications. This results in more consistent winding tension and higher quality finished products.
Technical Specifications
Detailed specifications for our gear-type winding machine series
| Model | 1110 | 1120 | 1130 | 2110 | 2120 |
|---|---|---|---|---|---|
| Winding Method | Gear Type | ||||
| Finished Outer Diameter (mm) | 60-200 | 60-200 | 60-200 | 130-650 | 230-800 |
| Min. Finished Inner Diameter (mm) | 25 | 30 | 40 | 60 | 80 |
| Finished Height (mm) | 80 | 80 | 80 | 100 | 150 |
| Wire Diameter Range (mm) | 0.5-1.6 | 0.7-2.0 | 0.7-2.5 | 1.0-4.0 | 1.0-4.5 |
| Storage Ring Diameter (mm) | 250 | 250 | 300 | 400 | 500 |
| Storage Ring Width (mm) | 3-8 | 5-18 | 8-25 | 10-35 | 20-60 |
| Max. Speed (RPM) | 230 | 230 | 230 | 150 | 150 |
| Power Supply |
220V/50Hz
220V/60Hz
380VAC
Custom voltages available
|
||||
| Dimensions (mm) | 500×600×750 | 500×600×750 | 500×600×800 | 600×900×1380 | 800×1050×1400 |
| Weight (kg) | 100 | 100 | 120 | 250 | 360 |
Industrial Applications
Our toroidal winding machines are engineered for diverse industrial applications
Transformers
Primary and secondary windings for power and electronic transformers
Inductors & Chokes
Precision winding for power inductors and EMI suppression chokes
Current Sensors
Accurate coil winding for measurement transformers
Resistors
Precision winding for resistive elements and potentiometers
