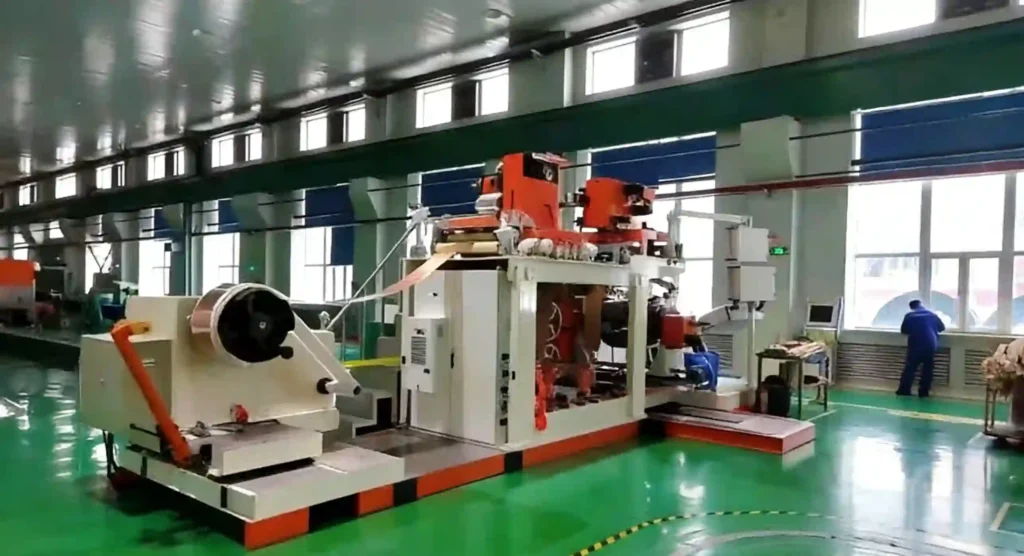

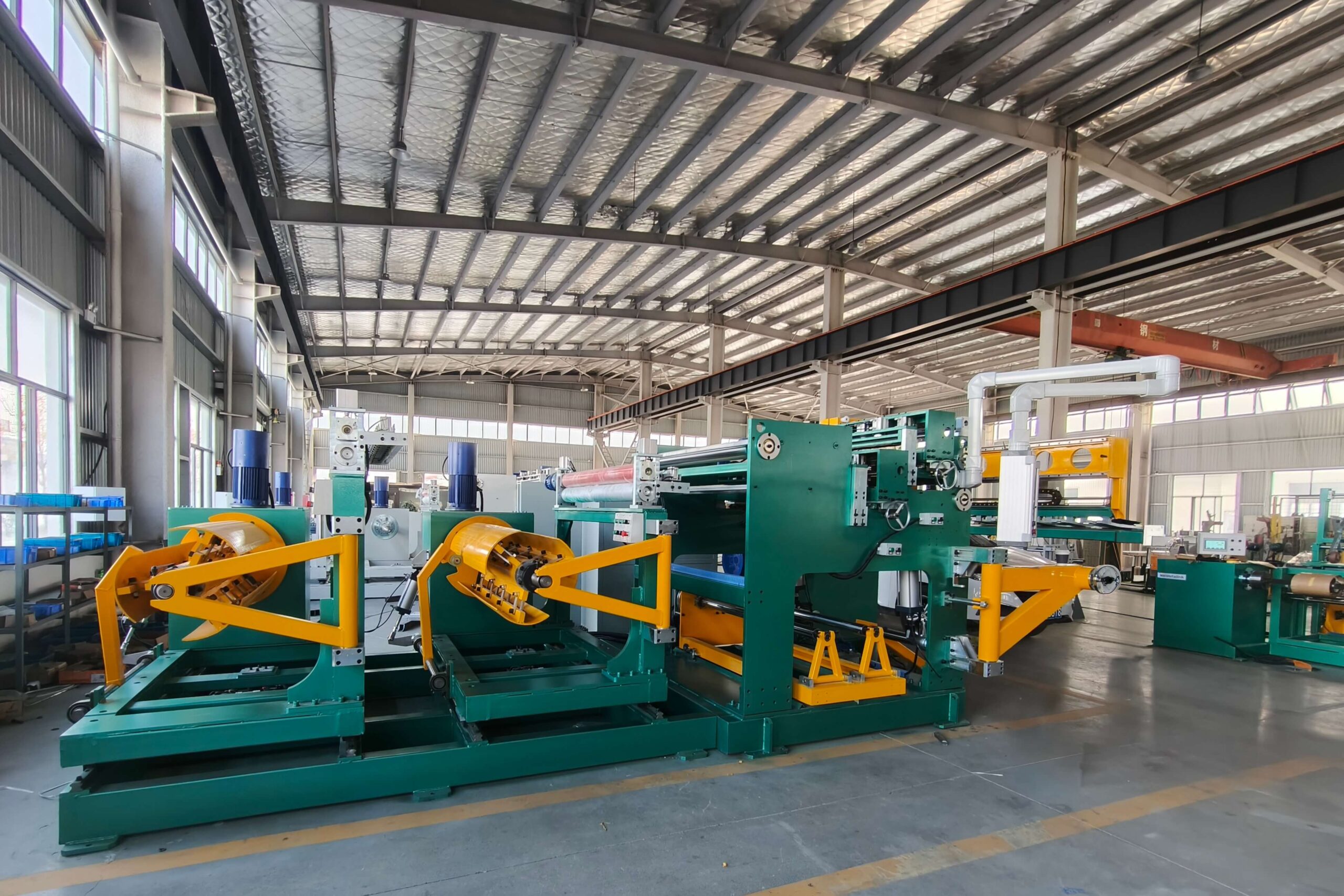

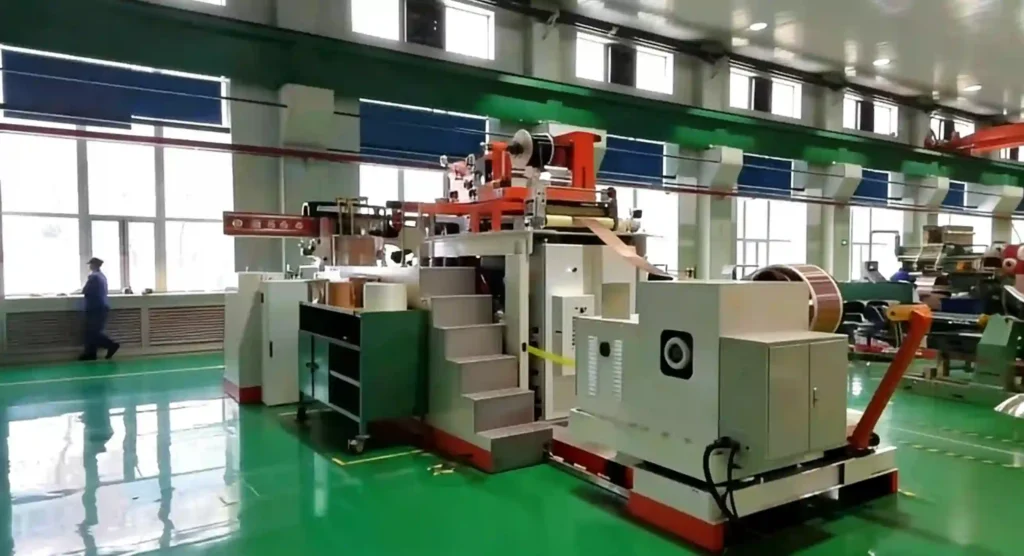

Automatic Foil Winding Machine
High-precision industrial equipment for transformer manufacturing with advanced tension control and automation features
Professional Automatic Foil Winding Solution
The Automatic Foil Winding Machine is designed for high-efficiency transformer manufacturing, offering precision winding with consistent tension control. This industrial-grade equipment ensures optimal performance for various foil thicknesses and coil sizes.
With advanced automation features including automatic welding, deviation correction, and interlayer insulation control, this machine significantly improves production efficiency while maintaining the highest quality standards in transformer manufacturing.
Precision Tension Control
Standard pneumatic with optional electric dynamic constant tension for foil and interlayer insulation paper.
Automated Operation
Complete automation from foil feeding to welding, with minimal operator intervention required.
High Accuracy Correction
Automatic correction system with ±0.5mm accuracy for consistent winding quality.
Flexible Configuration
Multiple model options with customizable features to match specific production requirements.
Technical Specifications
Foil Tension Control
Standard pneumatic with optional electric dynamic constant tension
Interlayer Insulation Paper Force Control
Standard pneumatic with optional electric constant tension
Layer Insulation Quantity
2 sets (standard)
Foil Band Shear Device
1 set / 2 sets (configurable)
End Insulation Devices
6 sets standard or according to customer requirements
Automatic Welding Device
TIG welding system for reliable connections
Burr Removal Device
2 sets for clean foil edges
Cleaning Device
2 sets for surface preparation
Main Technical Parameters (Double Foil Winding)
| Parameter | 1400-2 Model | 1200-2 Model | 1000-2 Model | 800-2 Model | 600-2 Model |
|---|---|---|---|---|---|
| Outer Diameter of Winding Coil | Θ1700mm | Θ1200mm | Θ1000mm | Θ1000mm | Θ850mm |
| Maximum Height of Coil (incl. leads) | 2000mm | 1550mm | 1350mm | 1150mm | 950mm |
| Foil Thickness Range | 0.5-3.0mm | 0.5-2.5mm | 0.3-2.2mm | 0.3-2.0mm | 0.3-1.8mm |
| Power of Main Motor | 30kw | 22kw | 18.5kw | 15kw | 11kw |
| Corrective Deviation Method | Automatic correction | Automatic correction | Automatic correction | Automatic correction | Automatic correction |
| Correction Accuracy | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Speed | 0-18r/min | 0-22r/min | 0-25r/min | 0-25r/min | 0-30r/min |
| Movement Mode of Welding Frame | Motor | Motor | Motor | Motor | Motor |
| Welding Machine Current | 500A | 500A | 350A | 350A | 350A |
Note: Specific and detailed parameters are based on actual technical specifications and may vary according to configuration.
