AUTOMATIC COIL WINDING MACHINE
Machine Introduction

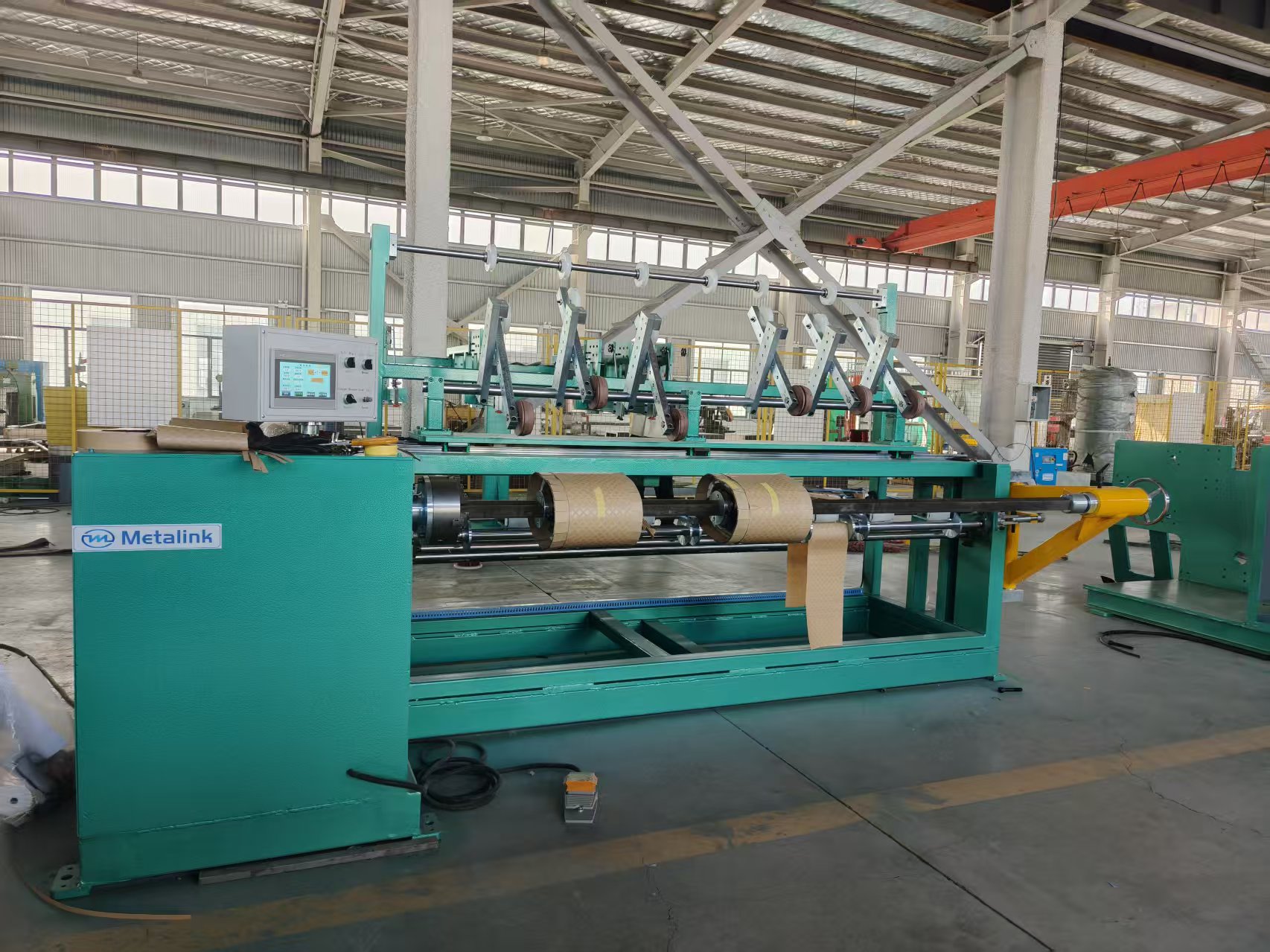

Our professional-grade automatic wire winding machines are engineered for high-precision coil production in various electrical applications. Designed for winding coils used in distribution transformers, mutual inductors, reactors, and similar electromagnetic components, these systems represent the pinnacle of coil winding technology.
Featuring fully automated operation with PLC control, our winding solutions significantly enhance production efficiency while maintaining consistent quality. Robust construction ensures durability in industrial environments, while the sophisticated control system allows for precise parameter adjustments to meet specific winding requirements.
Multi-Coil Winding
Simultaneously process 1-6 coils to maximize production efficiency and throughput
Intelligent Control
Advanced PLC system with touch panel interface for precise parameter adjustment
Variable Speed
Stepless frequency conversion speed regulation for optimal winding quality
Automated Insulation
Integrated layer insulation placement ensures consistent dielectric separation
Tension Control
Precision tension system maintains consistent wire tension throughout process
Automated Operation
Minimal operator intervention with automated wire arrangement and unloading
Technical Specifications
| Parameter | Specification |
|---|---|
| Center Height | 900 mm |
| Individual Coil Height | 450 mm |
| Working Force Distance | Max. 1500 N/M |
| Working Speed | 0-220 RPM |
| Speed Control | Stepless Frequency Conversion |
| Round Coil Outer Diameter | 30mm-350mm |
| Single Coil Axial Height | ≤250mm |
| Maximum Coil Weight | 350kg |
| Parameter | Specification |
|---|---|
| Main Motor Power | 7.5kW |
| Wire Diameter Range | Enameled Wire: Φ0.13mm-Φ4mm |
| Power Supply | 220V/60Hz |
| Max Simultaneous Coils | 6 |
| Control System | PLC with Touch Panel |
| Layer Insulation | 1PC (0.13-0.18mm) |
| Interlayer Insulation | Inner Diameter: φ76 |
Core Components
Control System
Advanced PLC with touch panel interface for precise operation control
Drive System
High-performance motors with frequency conversion for smooth operation
Tension Control
Precision tension mechanism for consistent wire winding
Insulation System
Automatic layer insulation placement for quality coil production
Customize Your Winding Solution
Every technical specification of our winding machines can be tailored to your specific production requirements. Our engineering team will work with you to create the perfect solution for your coil manufacturing needs.
