Extremely high accuracy

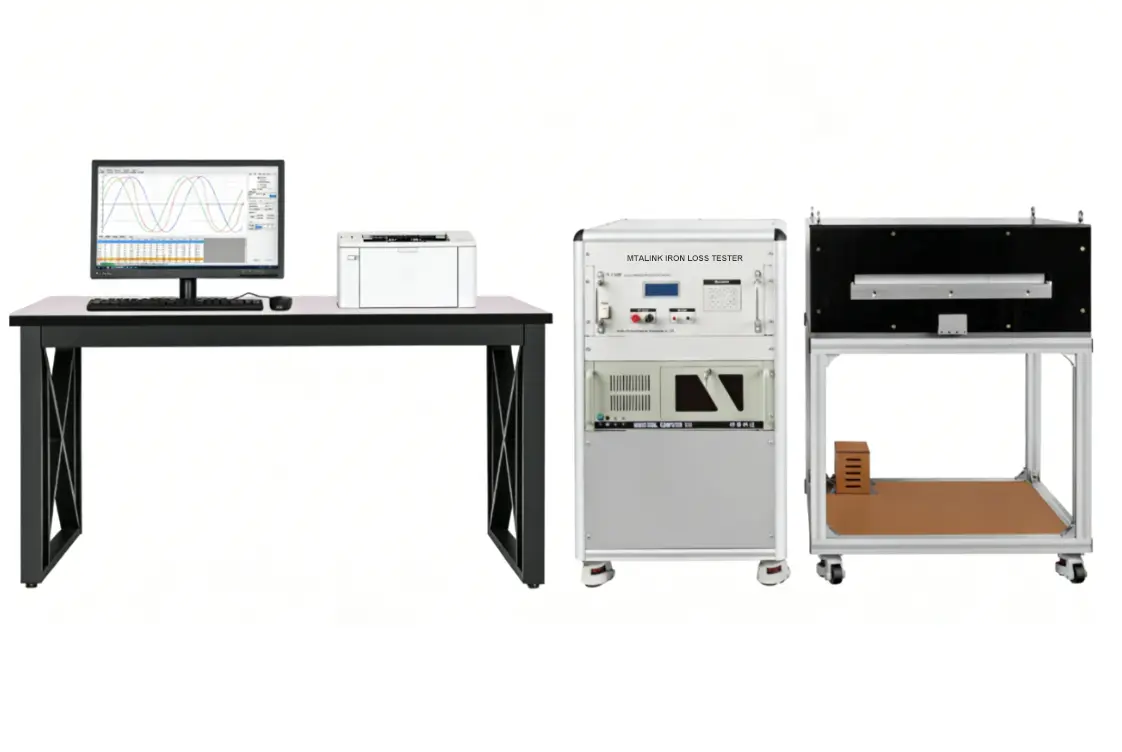

Iron Loss Tester
Our iron loss tester is a multifunctional AC magnetic property measuring instrument designed for soft magnetic materials. It delivers fast, accurate, and repeatable core loss measurements for transformer manufacturers, power utilities, and material suppliers.
Bm&Ps accuracy: <±0.5%
Accurate measurement of magnetic flux density and iron loss, outperforming other devices on the market.
Multi-functional
Test CRGO, CRNGO, permalloy, amorphous, and nanocrystalline; toroidal cores, E-shaped cores, and U-shaped cores and others.
User-friendly
Allows for direct online measurement of samples and displays all parameters and measurement curves.
Sorting function
Provides sorting capabilities for key parameters such as Bm, Hc, Br, Hm, Ps, and Ua.
——Features of Iron Loss Testing Device
Precision AC magnetic measurement for soft magnetic materials · ARM-based · Fully automated
High‑Speed Processing & Advanced Sampling
Flexible Test Modes
Wide Material & Sample Compatibility
User Interface & Connectivity
Data Storage & Sorting
Measured & Calculated Parameters
Curves & Reports
Automation & Calibration
——Uncertainty / Repeatability of Main Parameters
Measurement Uncertainty of Test Results (k = 2)
Frequency | Bm(%) | Hm(%) | μa(%) | Ps(%) | δ(%) |
|---|---|---|---|---|---|
50Hz、60Hz | 1.0 | 1.0～2.0 | 2.0 | 1.0 | 2.0 |
Repeatability of Test Results (at constant temperature)
Frequency | Bm(%) | Hm(%) | μa(%) | Ps(%) | δ(%) |
|---|---|---|---|---|---|
50Hz、60Hz | ±0.5 | ±1.0 | ±1.0 | ±0.5 | ±1.0 |
——Optional Tooling of Iron Loss Measuring Instrument
Epstein Frame / Epstein Tester
Single Electrical Steel Sheet Iron Loss Tester
Stress Permeameter
——Test Interface of Iron Loss Tester

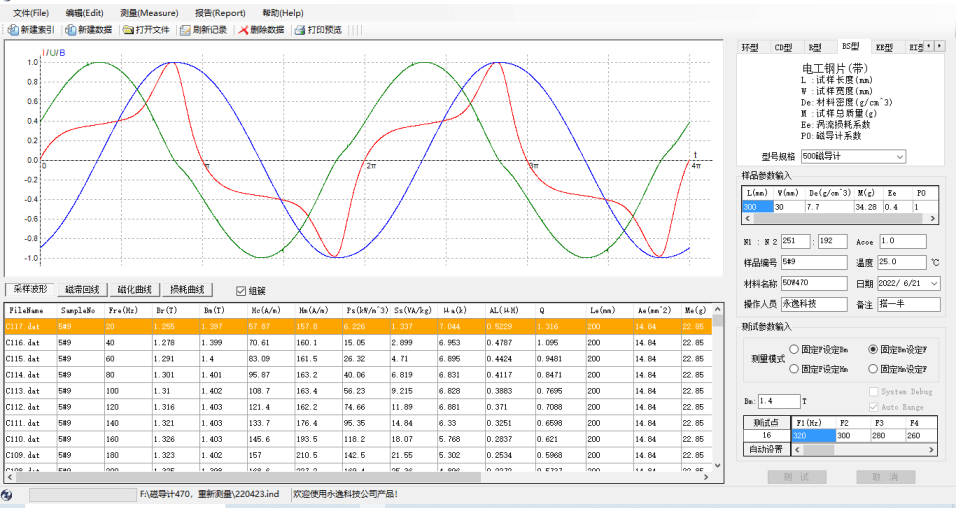

Sample Waveforms

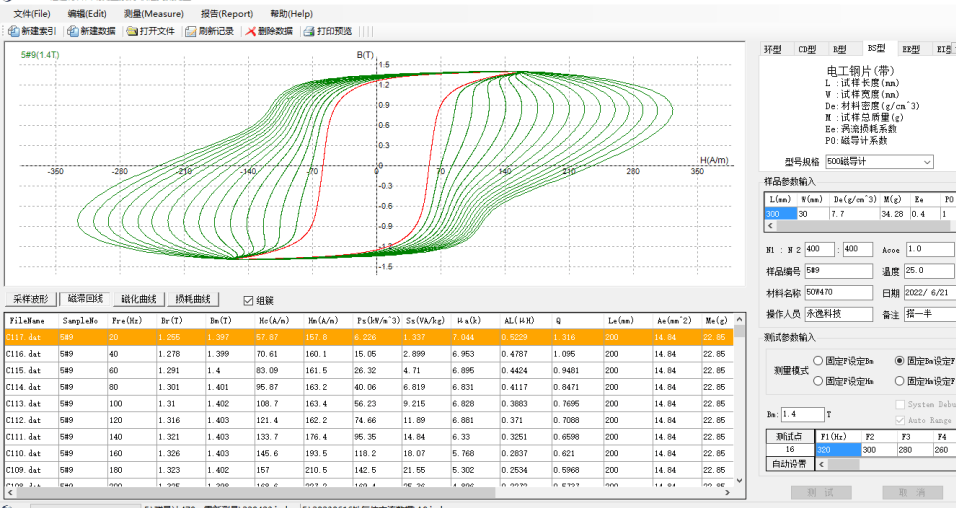

Hysteresis Loop Clusters

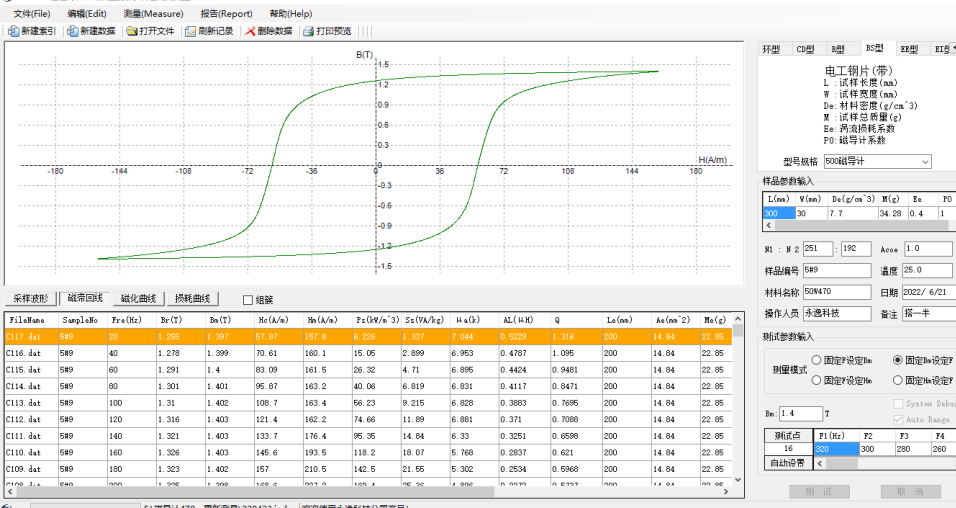

Hysteresis Loops

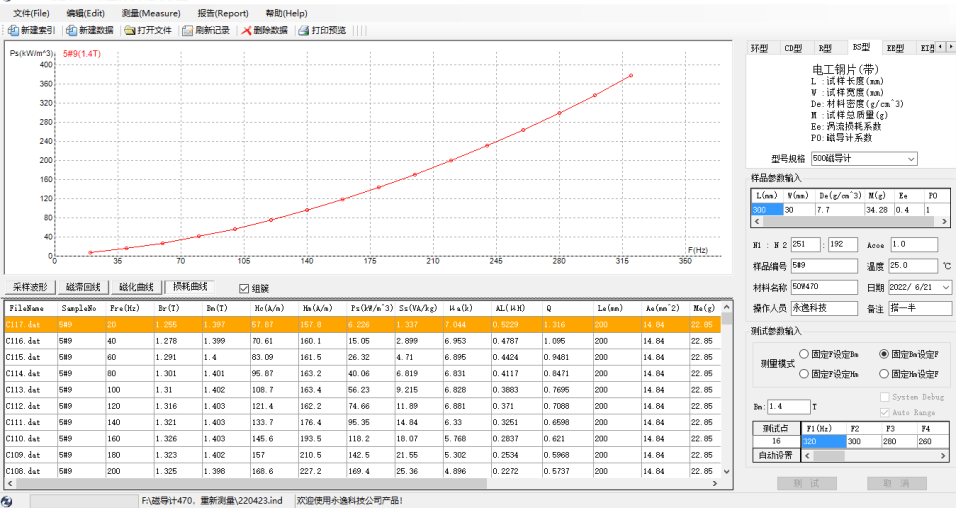

Loss Curves
—— Operation of the Iron Loss Tester
- Step-by-step tutorial videos to ensure a hassle-free experience.
We Follow Best Rules
This iron loss testing instrument is manufactured in accordance with high-standard production processes and quality control procedures, and is subject to rigorous inspection prior to dispatch.
- User manual and instructional videos
- Warranty period for the entire unit: 18 months
- Certificate of calibration
- 7x24 online support
—— Applicable Standards the Iron Loss Tester
– GB/T 3655-2022: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of an Epstein frame
– GB/T 13789-2022: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester
– GB/T 3658-2022: Method of measurement of the magnetic properties of soft magnetic metallic materials and powder metallurgy materials at frequencies from 20 Hz to 100 kHz using ring test specimens
– IEC 60404-2: Magnetic materials – Part 2: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of an Epstein frame
– IEC 60404-3: Magnetic materials – Part 3: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester
– IEC 60404-6: Magnetic materials – Part 6: Methods of measurement of the magnetic properties of magnetically soft metallic and powder materials at frequencies in the range 20 Hz to 100 kHz by the use of ring specimens

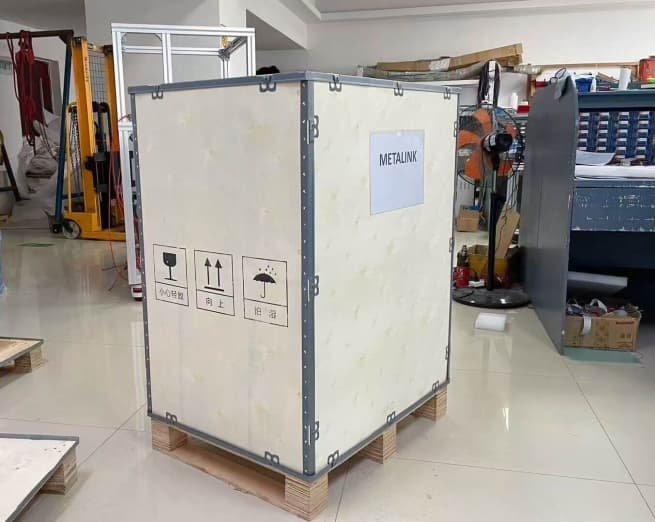

——Export Packaging for Iron Loss Testers
Each iron loss tester is carefully packaged in multi-layered protective export packaging that is waterproof and moisture-resistant to ensure safe transport during long-distance sea shipping.
Advantage
Committed To 100% Customer Satisfaction
Thinking and solving problems from the customer’s point of view
Trust and Worth
Our Partners
Our Shows
SMART ENERGY
Tokyo, JP
POWER EXPO
Atakent, KZ
ENERGY NEXT
Sydney, AU
ELECTRIC & POWER
Ho Chi Minh, VN
What Our Clients Say
Testimonials
R&D Manager
Emma
"We needed a fast and accurate way to check core loss in prototype motor stators. This instrument delivers stable readings with minimal drift. The software export function is very handy for our internal reports. Customer support responded to our questions within 24 hours."
Production Supervisor
Carlos Mendez
"Our operators learned to use it in less than an hour. The calibration routine is straightforward, and the probe connection is robust. "
Quality Engineer
Sophia
"We’ve been using this iron loss tester for six months on our electrical steel production line. The measurement repeatability is excellent, and the setup is intuitive. The single-sheet tester option saved us a lot of time compared to the traditional Epstein frame. Highly recommended."
Procurement & QA
Anna Schmidt
"We test every batch of silicon steel sheets from our suppliers. This iron loss tester gives us confidence to accept or reject materials on the spot. The carrying case and well-packed accessories also made international shipping worry-free. A reliable tool we use daily."
Request a Quote
Learn More From
Frequently Asked Questions
15 days.
Not necessarily. The user interface is designed for intuitive operation with on‑screen prompts. However, we provide a detailed user manual and video tutorial (available on YouTube). For bulk orders, we also offer free online training via Zoom/Teams.
Yes. You can freely set the test frequency to either 50 Hz or 60 Hz (as well as other custom frequencies) through the control panel. This makes it compatible with global industrial standards.
